Features & Benefits

Various Access

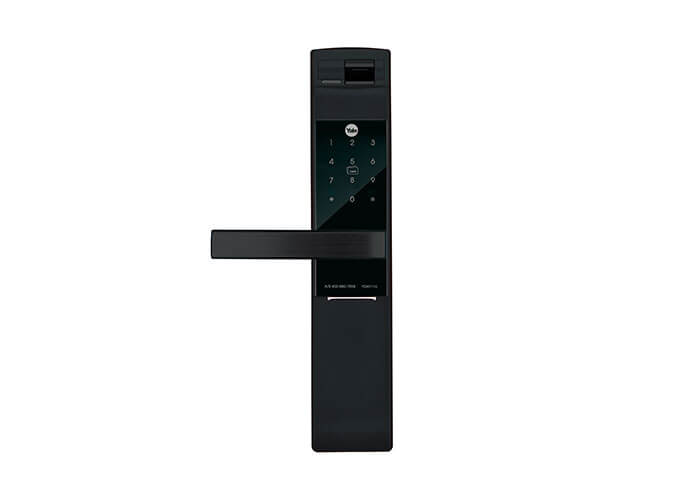

YDM7116A has 5-in-one to access the lock Fingerprint, Pin Code, RFID Card, Key Override, Bluetooth (via Yale Home app).

‍One-touch Fingerprint Verification Method (Easy Scan)
Easy Scan technology has been applied to Conveniently read a fingerprint in one touch to enter conveniently.

‍Fake PIN Code
To prevent the PIN Code from being exposed, it allows you to enter Fake numbers before or after entering your actual PIN Code.|

‍Mechanical key override (2 keys)
For emergency, it can also be unlocked with a mechanical key.

‍Bluetooth - via Yale Link app
YDM7116B is compatible with Bluetooth access available on your Smartphone (with Bluetooth module module).

‍Remote Control (Optional)
Remote control is available for purchase. It is using Wireless Floating ID technology and works up to 50m.

‍WiFi supported - via Yale Bridge (Optional)
Remotely access your digital lock from anywhere. Able to track who access your door. Runs on 2.4Ghz WiFi bandwidth.

‍Normal / Master mode
For multi-user environment, YDM7116A can be to Security (Master) mode that the master can register and delete each user while Normal mode controls all the users at one time.

‍Voice Guide Feature
As the voice guide is offered that let you know the operation status how to set each features, mode for easier and more convenient use.

‍Operation status notification
Whenever any operation is made, the keypad informs you what is happened through different alignment of the numbers.

‍Internal Forced Lock
It is a security-enhancing function that 'disables' authentication methods such as passwords, RFID cards and fingerprints from outside when setting up functions indoors.

‍Automatic Locking
The Yale series automatically locks the door after checking it is properly closed. (Manual operation is also available.)

‍Low battery alarm and emergency power supply terminal
It warns in case of low battery with alarm and LED. When the batteries are completely discharged, you can easily supply emergency power to the lock with a standard 9V battery.

‍Alarm (Break-in / Damage)
80dB alarm goes off if anyone attempts to damage the lock or force the door open, or if the lock detects.

Type : Mortise lock
Fingerprint : Up to 20
Card : Up to 40
Mechanical key : 2
PIN code : 4 - 10 digits
Thickness : 40-80mm, suitable wooden door.
Backset : 60 / 70mm

‍
Front Body: 40mm ( D) X 68mm (W) X 340mm (H) (w/o lever)

Back Body: 38mm (D) X 72mm (W) X 344mm (H) (w/o lever)

‍
